Notes 8.2
Ecological Organization
|
|
Directions
|
|
|
Review
these notes. They are especially helpful when completing the notes self
test and notes quiz. The notes open in a separate window which can be left
open when you are working on the self test and quiz. You can resize the
window by grabbing the bottom right corner and dragging it. You can also
move the window by grabbing the top heading bar and dragging it. Be sure
to close the extra window when you have finished using it. |
|
Introduction
|
|

|
Ecological
Organization
- Communities
and Ecosystems
- Community
Structure
- Ecosystem
Structure
- Energy
and Nutrients
- Productivity
- Zonation
|
|
Communities
and Ecosystems
|
|
Community
- Definition: A
community is a group of interacting populations living in the same
area
- All of the various
species in a single locale
- Often named after
the dominant species
- A. Ex. Mussel
Bed
- B. Ex. Coral Reef
- C. Ex. Sargassum
Rafts
Ecosystem
- Definition: An
ecosystem is a group of interacting communities living in the same
region and the physical environment in which they live
- Ex. Tropical Nearshore
Ecosystem consisting of a coral reef community, a seagrass community,
and a mangrove community
- A total environment,
biotic and abiotic, that is somewhat self-contained and self-sustaining
- A. Requires an
input of energy and materials to sustain life
- B. Capable of
recycling elements reducing demand for them
|
|
Community
Structure
|
|
Community Structure
- Definition:
The characteristics of a community
Species Composition
- Definition:
The particular species found in a community
Species Diversity
- Definition:
A measure of the types
of different species encountered in a habitat
- Species diversity
(H) is computed mathematically and is influenced by two components:
species richness (S) and species evenness (J)
- Species richness (S)
is the number of species present in a community
- Species evenness (J)
is how evenly individuals are distributed among the species
Example of Species
Diversity
- Compare Fig. 1 and
Fig. 2 below.
- The two rocky shores,
in these hypothetical examples, have the same species richness but
the Gulf shore in Fig.1 has a lower species evenness than the Pacific
shore in Fig. 2 and thus a lower species diversity.
- An observer on the
Gulf shore would be most likely to encounter Chthamalus fissusand
overlook the other four species. Whereas, an observer on the Pacific
coast is just as likely to encounter any of the five species.
Fig.
1 Hypothetical Data from Gulf of California Rocky Shore
Species |
Numbers
per Square Meter |
Chthamalus
fissus |
200 |
Pilumnus
limnosus |
10 |
Acanthina
angelica |
10 |
Clibinarius
digueti |
10 |
Turbo
fluctuosus |
10 |
S=5 |
|
Fig.
2 Hypothetical Data from Pacific Coast Rocky Shore
Species |
Numbers
per Square Meter |
Balanus
crenatus |
25 |
Pachygrapsus
crassipes |
25 |
Acanthina
spirata |
25 |
Pagurus
samuelis |
25 |
Tegula
gallina |
25 |
S=5 |
|
Community Dominants
- Definition:
Species which dominate the community
- Numerical dominant
(ex. Chthamalus fissus numerically dominates the Gulf of California
Rocky Shore in the Hypothetical Data of Fig. 1 above)
- Biomass dominant
- Importance to the
existance of other species by altering the habitat in some way
Keystone Species
- Definition:
Species which control the community and if removed would cause fundamental
changes in community structure
Ecological Succession
- Definition:
A predictable replacement of one community by another; starting with
a short-lived pioneer community and ending with the establishment
of a stable, long-lasting climax community.
- Pioneer Community
--> Seral Stages --> Climax Community
Pioneer Community
- Definition:
The first stage in a succession
- Dominated by short-lived
"weedy" species
- Facilitates the establishment
of the next stage
Seral Communities
- Definition:
In between stages in a succession
- Facilitates the establishment
of the next stage leading to a climax community
Climax Community
- Definition:
The last stage in a succession
- Dominated by long
lived, "competitive" species
- Inhibits the establishment
of another community
Primary Succession
- Definition:
A succession that starts from a completely abiotic condition
- Ex. After a volcanic
eruption or the introduction of a new structure into the ocean
Secondary Successsion
- Definition:
A succession that starts from a biotic condition that has been altered
and no longer supports a climax community
- Ex. After the removal
of kelp by a storm
|
|
Ecosystem
Structure
|
|
Ecosystem Structure
- Ecosystems are somewhat
self-contained and self-sustaining.
- Requires an input
of energy and materials to sustain life
- Capable of recycling
elements reducing demand for them
- Ecosystems are organized
to facilitate the passage of energy and materials which are used by
organisms for maintanence and growth
Trophic Structure
- Definition:
The freeding relationships
found in an ecosystem.
- Feeding relationships
influence the passage of energy and materials within ecosytems
Producers
- Photoautotrophs
- Energy and materials
both enter the biotic portion of ecosystems by the action of producers
Consumers
- Heterotrophs
- Energy and materials
are both transferred between species in ecosystems by the action of
consumers
Levels of Consumption
- 1st degree
consumers eat producers
- All herbivores are
1st degree consumers
- 2nd degree
and higher level consumers eat other consumers
- All carnivores are
2nd degree and higher level consumers
Levels of Carnivory
- 1st degree
carnivores are 2nd degree consumers and eat 1st degree
consumers (eat herbivores)
- 2nd degree
carnivores are 3rd degree consumers and eat 2nd degree
consumers (eat 1st degree carnivores)
- 3rd degree
carnivores are 4th degree consumers and
eat 3rd degree consumers (eat 2nd degree carnivores)
Top Carnivores
- Definition:
Highest level carnivores
- Highest level consumers
Omnivores
- Definition:
Eat many types of food
- It is difficult to
classify their level of consumption since they operate at more than
one level
Scavengers
- Definition:
Eat dead organisms
- They can operate at
any one of the consumer levels depending on the level of the dead
organisms they eat
Food Chain
- Definition:
A linear relationship of predators and prey where each prey species
has one predator species and each predator species has one prey species

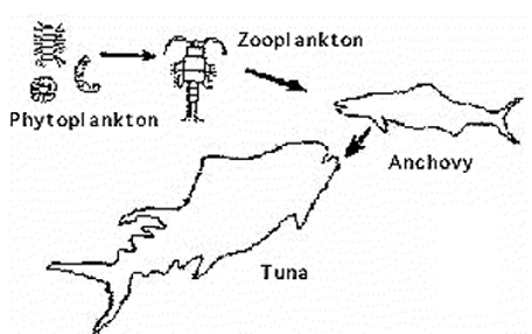

Food Chain Diagram
- In a food chain diagram
the arrows point from the prey to the predator
- Example: phytoplankton--->zooplankton--->anchovy--->tuna

Food Web
- Definition:
A complex set of relationships between predators and prey where prey
species have 2 or more predator species and predator species have
2 or more prey species.
Food Web Diagram
- The arrows point from
the prey to the predator
- The producers are
placed at the bottom with the herbivores just above them, and the
carnivores at the top.
|
|
Energy
and Nutrients
|
|
Energy and Ecosystems
- Energy flows through
an ecosystem
- Open system with a
continuous input and an equivalent continuous output
Energy Supply
- Most ecosystems rely
on the unlimited supply of sunlight capturing it by photosynthesis
- Energy captured during
photosynthesis is stored in the chemical bonds of the molecules synthesized
during the process
Energy Utilization
- Most of the captured
energy is used by the autotrophs to maintain their lives and is lost
as heat
- About 10% is used
for growth and reproduction being transformed into producer biomass
Biomass
- Definition:
Weight of living tissues
- Wet weight or dry
weight
Available Energy
- The energy in producer
biomass is transferred to herbivores and then to carnivores.
- Energy transfers are
by ingestion, digestion, absorption and assimilation.
Energy Losses
- Energy is lost from
an ecosystem in the form of heat and the chemical energy in wastes
and dead organisms that are transported out of the ecosystem
Energy Transfer
- Energy transfers between
trophic levels are only 10% efficient with 90% lost as heat
- Ten percent of the
energy is found in the biomass of animals in the next trophic level
Energy Losses
- Not all prey items
are eaten some die and about 10% of their energy goes into decomposer
biomass
- Digestion and absorption
is not complete
- Cellular respiration
transforms alot of the energy to make ATP which is used for many processes
other than growth and reproduction
- Examples: movement,
transport, vital processes

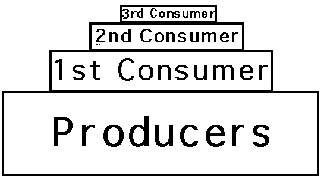

Eltonian Pyramid
- Graphical represention
of the energy relationships of trophic levels in an ecosystem
- Represent the decreasing
standing crop at succeedingly higher trophic levels
Standing Crop
- Definition:
The amount (of individuals, biomass, or energy) present at any one
moment in time
Pyramid Diagrams
- Trophic levels are
arranged with the producers at the base of the pyramid and the consumers
in increasingly higher levels up the pyramid
- The width of the pyramid
at any trophic level indicates the size of the standing crop

Pyramid Types
- Numbers: Represents
the number of individuals of each trophic level
- Biomass: Represents
the weight of living tissue of each trophic level in kilograms
- Energy: Represents
the energy content of each trophic level in calories
Pyramid Relationships
- The energy content
and biomass of a single individual increases moving up the pyramid
although the total energy and biomass of the trophic level decreases
Materials and Ecosystems
- Materials such as
carbon, nitrogen and phosphorus cycle in an ecosystem
- Semi-closed system
with limited input and output of elements and continuous recycling
between the biotic and abiotic portions
Source of Materials
- The Reservior is the
source of materials from outside the ecosystem
- It is often the water
or atmosphere but is sometimes sediments or rock and can be another
ecosystem
Recycling of Materials
- Occurs between the
organisms of the system and an abiotic Exchange Pool which is usually
in the water or sediments inside the ecosystem
Decomposition
- Decomposers such as
fungi and decomposing bacteris breakdown organic material into inorganic
material making it available to the mineralizing bacteria
- Decomposers release
materials from the biotic portion of the ecosystem to the exchange
pool or reservior
Regeneration
- Mineralizing bacteria
regenerate inorganic materials by transforming inorganic materials
in a way that makes them available to photoautotrophs
- Allows materials to
reenter the living portion of an ecosystem
|
|
Productivity
|
|
Production
- Definition:
The process of making food from inorganic compounds
- Carried out by photosynthetic
autotrophs such as phytoplankton, seaweeds and plants
- Determines how much
food is available to consumers
Photosynthesis
- Definition:
A process utilizing
light energy to synthesize food from inorganic compounds
- Sunlight energy captured
by chlorophyll is used to synthesize sugar from carbon dioxide gas
and water
- Carbon Dioxide
+ Water + light ---> Sugar + Oxygen
Gross Primary Production
(GP)
- Definition:
Total amount of material produced including that which is used by
the producer to meet its own energy requirements (photosynthesis)
- Not all of this is
available to herbivores
Net Primary Production
(NP)
- Definition:
The amount of producer material produced that goes into new producer
biomass (growth and reproduction)
- This is the material
available to herbivores
Respiration (R)
- Definition:
The amount of material used by the producer during cellular respiration
to make ATP
- ATP provides energy
for the chemical and mechanical activities of phytoplankton
Primary Production
Equation
- NP=GP+R
- NP=Net Primary Production
(photosynthesis minus respiration)
- GP=Gross Primary
Production (Photosynthesis)
- R=Respiration
Photosynthesis or
Gross Production (GP)
- Carbon Dioxide
+ Water + light ---> Sugar + Oxygen
- Oxygen is a Product
Respiration (R)
- A process of oxidizing
food molecules to extract their energy content
- Sugar +
Oxygen ---> Carbon Dioxide + Water + Energy (ATP)
- Oxygen is a Reactant
Measuring Gross Production
(GP) by Phytoplankton
- Gross Production can
be measured by measuring changes in dissolved oxygen concentration
under controlled conditions
- Photosynthesis releases
oxygen
- Respiration uses up
oxygen
Light Bottles
- Phytoplankton in a
clear bottle will photosynthesize and respire
- Gain in dissolved
oxygen concentration is a measure of Net Production (NP) or photosynthesis
minus respiration
Dark Bottles
- Phytoplankton in a
black bottle will respire but cannot photosynthesize
- Loss in dissolved
oxygen concentration is a measure of Respiration (R)
Dark and Light Bottles
- Gross Production (GP)
or photosynthesis can be calculated from pairs of bottles
|
|
Zonation
|
|
Benthic Zonation
- Bottom zones
- Based on water depth
and relationship to continents
- Intertidal Zone is
the benthic area that is alternately exposed to the air and the sea
- Subtidal Zone is the
benthic area that is below the intertidal but on the continental shelf
- The Deep-Ocean Floor
is the benthic area beyond the continental shelf
Pelagic Zonation
- Water column zones
- Based on water depth
and relationship to continents
- Neritic Zone is the
pelagic layer overlying the continental shelf
- Oceanic Zone is the
pelagic layer overlying the ocean basins
Pelagic Stratification
- Division of the pelagic
environment based on depth and other abiotic factors which vary with
depth.
- These factors include
light, temperature, salinity, dissolved oxygen, pressure, and nitrogen
and phosphorus concentrations
- Epipelagic Zone is
the pelagic layer that lies above 200 meters
- Mesopelagic Zone is
the pelagic layer that lies between 200 to 1,000 meters
- Deep-Sea Zone is the
pelagic layer that lies below 1,000 meters
Light and Pelagic
Zonation
- The Photic Zone is
the well lighted waters down to 100 meters in clear water
- The Disphotic Zone
is the poorly lighted waters from 100-1,000 meters in clear water
- The Aphotic Zone is
the unlighted waters below 1,000 meters in clear water
|
|
|
|
|
