Lab Activity 5.4
Shark Urogenital and Nervous Anatomy

  Directions

Study the instructional material below. Be sure to click on each of the photographs for an enlarged view in a separate window. The larger version is necessary to complete the assignment. It opens in a separate window which can be resized by grabbing the bottom right corner and dragging it. It can also be moved by grabbing the top heading bar and dragging it. Be sure to close the extra window by using the X in IBM, or the close box in MAC when you are finished using them.

  Introduction


Sharks are fast swimming, muscular fish with cartilagenous skeletons. They are the modern descendants of an ancient line of evolution dating back over 100 million years. By studying the anatomy of a shark you will become familiar with its adaptations for life as a marine predator. The urogenital and nervous systems of a dogfish shark will be featured in this lab activity.

Top  Instruction

Examine all the photographs of the dogfish shark by clicking the links below each of the thumbnail pictures. Study the descriptions that go with each photograph and learn the stated information. Practice naming the featured structures in the self-test photographs.

Be sure to write about what you are learning in the lab section of your notebook. You will be expected to answer questions about the lab activity during the lab self test and lab quiz. It helps to have your text and coloring books open beside you for support.


Supporting Information
Refer to the Assigned Readings Below:
Marine Biology Textbook Chapter 8, pages 166 to 169 and 174 to 175
Marine Biology Coloring Book Plates 49 to 51

Urogenital Anatomy of the Dogfish Shark



The specimen in the phographs was prepared by removing almost the entire liver, alimentary canal, pancreas, and spleen. This revealed the urogenital structures: gonads, kidneys, and associated ducts.

The urinary and genital systems have distinct and unique functions: (1) the removal of nitrogenous wastes and the maintenance of water balance, and (2) the reproduction of the species. However, due to their similar developmental origins and common structures, they are usually considered as a single system.

The shark kidney and its ducts are quite different from those in higher vertebrates. The relationship between the urinary and genital structures is also quite different.

The kidneys are flattened, ribbon-like, darkly colored structures lying dorsally on either side of the midline, along the entire length of the body cavity. A tough, white, glistening strip of connective tissue is found between the kidneys in the midline.

The kidneys of the male are essentially the same as those of the female. The posterior portion is involved in the manufacture and transport of urine. The main difference lies in the anterior portion of the kidney, which in females has no function, but in males is an active part of the reproductive system.

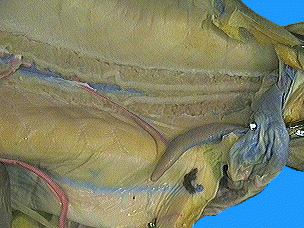

Male Shark Kidneys

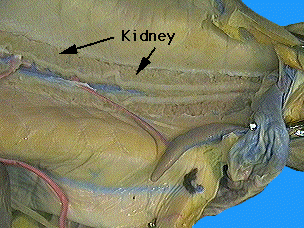

Labeled Kidneys

Self-test Kidneys

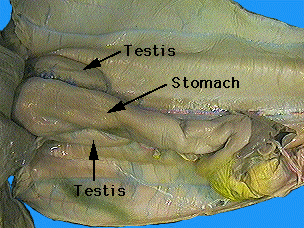

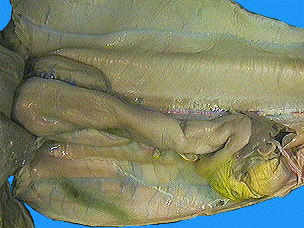

In males, paired testes lie near the anterior end of the body cavity, dorsal to the liver, adjacent to the anterior ends of the kidneys. The sperm pass from the testes to the kidneys within narrow tubules called efferent ductules.



Male Shark Testes

Labeled Testes

Self-test Testes

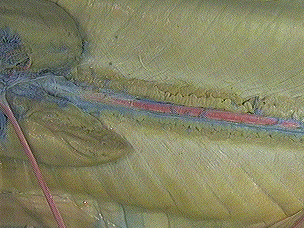

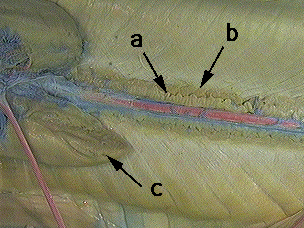

After passing through the anterior end of the kidney (in males) the sperm enter the ductus deferens and pass posteriorly toward the cloaca. In mature male specimens, the ductus deferens may be seen on the ventral surface of the kidneys as a pair of highly coiled tubules.

In females this duct carries urine. In males it transports spermatozoa and seminal fluid.

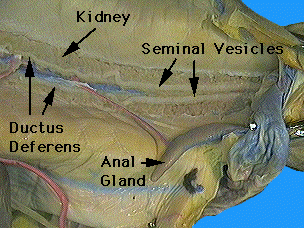

In males, the posterior portion of the ductus deferens widens and straightens to form the paired seminal vesicles.



Male Shark Ductus Deferens

Labeled Ductus Deferens

Self-test Ductus Deferens



In males, the paired sperm sacs at the posterior ends of the seminal vesicles receive the seminal secretions. They join to form the urogenital sinuses, which exit through the fleshy conical urogenital papilla which extends from the cloaca.

The accessory urinary ducts collect and transport urine from the kidneys. These paired thin tubules may be found along the medial side of the posterior half of the kidney. Small collecting tubules from the kidneys lead into the accessory urinary ducts along their lengths.

The cloaca receives the genital and urinary products as well as the feces.

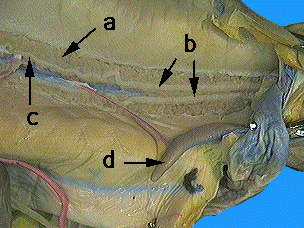

Male Shark Seminal Vesicles

Labeled Seminal Vesicles

Self-test Seminal Vesicles



The claspers are modified extensions of the medial portions of the pelvic fins. They are inserted into the female's cloaca during copulation.

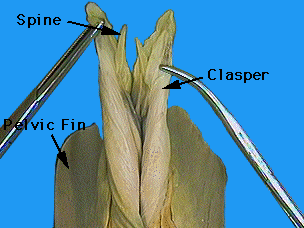

The finger-like claspers each have a dorsal groove, the clasper tube that carries the seminal fluid from the cloaca of the male to the cloaca of the female during mating.

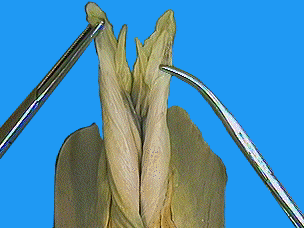

Male Shark Clasper Tubes

Labeled Clasper Tubes

Self-test Clasper Tubes



The specimen in the phographs was prepared by removing almost the entire liver, alimentary canal, pancreas, and spleen. This revealed the urogenital structures: gonads, kidneys, and associated ducts.

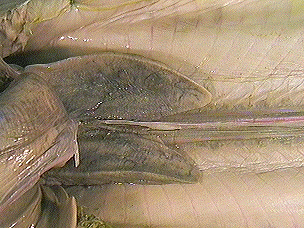

In females, the ovaries are two cream-colored elongated organs in the anterior part of the body cavity, dorsal to the liver on either side of the mid-dorsal line. The shape of the ovaries will vary depending upon the maturity of the specimen. In immature females, they will be undifferentiated and glandular in appearance. In mature specimens, you may find two to three large eggs, about three centimeters in diameter, in each ovary. When these break the surface of the ovary, upon ovulation, they enter the body cavity and by means of peritoneal cilia are moved into the oviducts.



Female Shark Ovaries

Labeled Ovaries

Self-test Ovaries



The oviducts are elongated tube-like structures lying dorsolaterally the length of the body cavity, along the sides of the kidneys. In mature specimens they are more prominent. The distal half of the oviduct is enlarged to form the uterus.

The shell gland is the anterior end of the oviduct. The eggs are fertilized and receive a light shell-like covering as they pass through the shell gland.

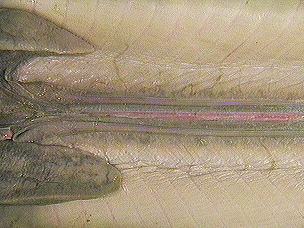

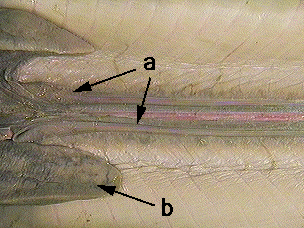

Female Shark Oviducts

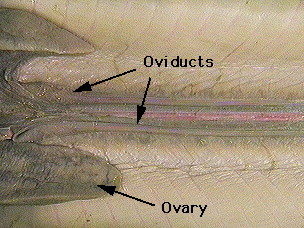

Labeled Oviducts

Self-test Oviducts



The posterior half of the oviduct becomes enlarged and is known as the uterus. The fertilized eggs develop into embryos in the uterus. Upon completing their period of gestation (close to two years), the young are ready to be born.

The cloaca serves for the elimination of urinary and fecal wastes as well as an aperture through which the young "pups" are born.

The two uteri open into the posterodorsal portion of the cloaca just ventral to the urinary papilla.

Fertilization in the female dogfish shark is internal, usually taking place within the shell gland of the oviduct. The fertilized eggs continue to move posteriorly to the uterus. As they grow the pups are attached to the egg, now known as the yolk sac, by means of a stalk. During its period of gestation, which is nearly two years, the yolk is slowly absorbed by the shark "pup." Numerous uterine villi, finger-like projections from the uterine wall, make contact with the surface ot the developing embryo and its yolk sac. It is believed that these provide the embryo with water; all other nutrients are supplied by the yolk. At birth the young are about 23 to 29 centimeters long. This type of development, where the young are born as miniature adults but have received hardly any nutrition directly from the mother's uterus, is known as ovoviviparous.

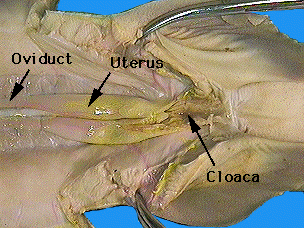

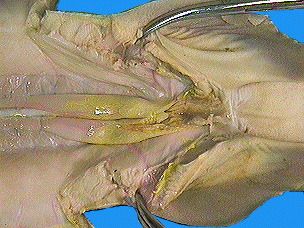

Female Shark Uteri

Labeled Uteri

Self-test Uteri





Nervous Anatomy of the Dogfish Shark

The specimen in the photographs was prepared by removing the skin from the dorsal surface of the head and shaving off thin horizontal chips of cartilagenous cranium until the brain and cranial nerves were exposed.

The nervous system functions in communication between the various parts of an organism and between the organism and its external environment. It consists of the central nervous system (brain and spinal cord) and the peripheral nervous system (sense organs, cranial and spinal nerves).

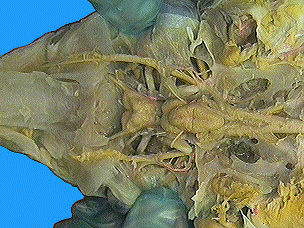

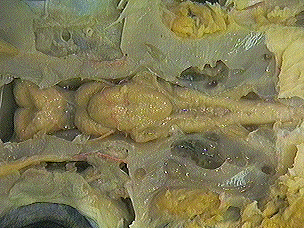

Shark Cranial Cavity

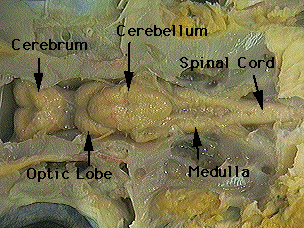

Labeled Cranial Cavity

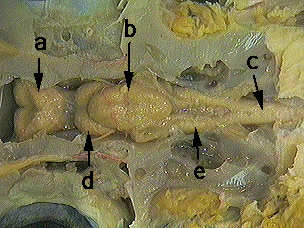

Self-test Cranial Cavity





Forebrain

The telencephalon is the most anterior portion of the brain which includes the following parts:

    • The olfactory bulbs are paired extensions of the anterior portion of the brain. They are rounded masses which make contact anteriorly with the spherical olfactory sacs, the organs of smell.
    • The two cerebral hemispheres are the rounded lobes of the anterior brain. The anterior portions of the cerebrum are known as the olfactory lobes.

The diencphalon is the second portion of the forebrain, directly posterior to the telencephalon. It consists of the epithalamus, pineal body, thalamus, hypothalamus and pituitary body.

Midbrain

The optic lobes are a pair of prominent bulged structure.

Hindbrain

The cerebellum is an oval-shaped dorsal portion that partly overlaps the optic lobes.

The medulla oblongata is the elongated posterior region of the brain that is continuous posteriorly with the spinal cord.

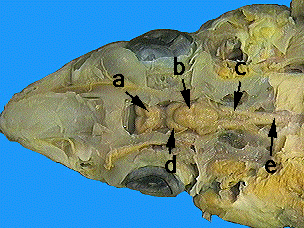

Shark Brain

Labeled Brain

Self-test Brain

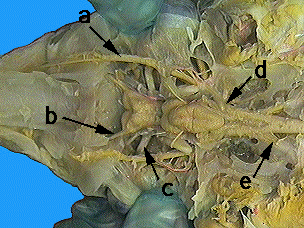

Cranial Nerves

The cranial nerves originate in the brain and exit at the chondrocranium. These nerves can be sensory, carrying impulses to the brain; they can be motor, carrying impulses from the brain to muscles and glands; or they can be mixed nerves, carrying both sensory and motor fibers.

The cranial nerves of all vertebrates have similar names and similar functions. Fish are usually described as having ten pairs of cranial nerves, including:

  • (I) The olfactory nerve -- a sensory nerve, originates in the olfactory epithelium of the olfactory sac and terminates in the olfactory bulb of the cerebral hemisphere. It is concerned with the sense of smell.
  • (II) The optic nerve -- also a sensory nerve, originates in the retina of the eye, exits the back of the orbit, passes medially and posteriorly to the optic chiasma and enters the optic lobes.
  • (V) The trigeminal nerve -- a mixed motor and sensory nerve, arises from the anterior end of the medulla. It has four branches that innervate the face, eyes, mouth and jaws. The superficial opthalmic nerve is one of the four branches. It has a general sensory function for the skin of the rostrum.
  • (X) The vagus nerve -- the longest of the cranial nerves. It is a mixed motor and sensory nerve that arises at the posterior end of the medulla. It innervates the gills, throat, esophagus, stomach, intestine and body wall.





Shark Cranial Nerves

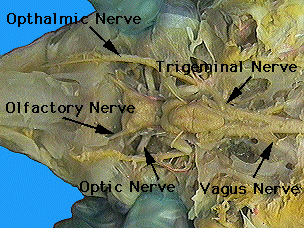

Labeled Cranial Nerves

Self-test Cranial Nerves

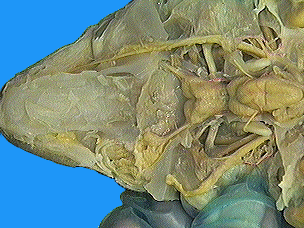

The olfactory sacs are spherical structures that contain a series of radial folds called olfactory lamellae. Their surfaces are covered with olfactory epithelium. Sea water taken into the nares is passed over these sensory areas. Here the odors stimulate the cilia-like endings of neuro-sensory cells.

The olfactory bulbs are a paired anterior extension of the brain leading into the posterior end of the olfactory sacs. Their fibers continue into the olfactory tract and the olfactory lobe of the cerebral hemisphere.

The sclera is the tough, white, fibrous outer coat of the eye. At places it is made even more firm by cartilage embedded in the sclera.

The iris is the pigmented anterior extension of the choroid layer. In its center is the pupil. The iris regulates the size of the pupil.

In the living shark the lens is a clear and flexible structure located behind the iris. It helps to focus the light upon the light sensitive retina.

The retina is the multi-layered sensory gray-white colored membrane. The rods and cones which receive light stimuli are located here. The optic nerve leaving the eye is a continuation of the light receptor cells in this membrane.





Shark Olfactory Sac

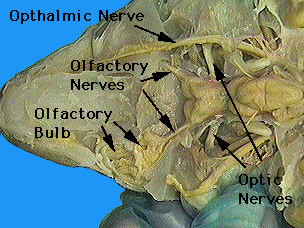

Labeled Olfactory Sac

Self-test Olfactory Sac
